The development of orally disintegrating films (ODFs) has become one of the most strategically important directions in contemporary drug delivery research. ODFs offer a compelling blend of rapid disintegration, improved patient compliance, ease of administration, and suitability for populations with swallowing difficulties—particularly pediatric, geriatric, or neurologically impaired groups. While the scientific field has already established a wide range of polymeric matrices, plasticizers, disintegrants, and solvent-casting methods, the challenge of engineering porosity within ODF systems remains both technically significant and pharmacokinetically consequential.

The study examined in this analysis provides a thorough investigation into the preparation of porous cellulose-based ODFs via thermally induced decomposition of a porogen material (citric acid) embedded in solvent-cast films. This innovative approach allows porosity to be generated in situ during post-processing thermal treatment, thereby avoiding the need for external templating or costly extraction methods. From a pharmaceutical engineering standpoint, this method represents a practical convergence of polymer science, thermal chemistry, and dosage-form performance optimization.

The objective of this article is to deliver a comprehensive academic dissection of the study’s methodology, material interactions, physicochemical characterizations, morphological data, mechanical properties, and dissolution outcomes, as well as the theoretical foundations that frame these observations. The tone intentionally mirrors the precision and structure expected in peer-reviewed pharmaceutical science, ensuring rigorous adherence to the factual content of the provided PDF.

Formulation Rationale: Cellulose as a Structural Backbone and Citric Acid as a Thermally Decomposable Porogen

Cellulose derivatives—particularly hydroxypropyl methylcellulose (HPMC)—remain the most widely employed polymeric matrices for Orally Disintegrating Films due to their mechanical strength, film-forming capacity, and safety profile. Their inherent hydrophilicity supports rapid hydration, while their physicochemical stability ensures structural integrity during manufacturing. Nevertheless, cellulose films tend to exhibit limited inherent porosity, resulting in disintegration behavior primarily governed by polymer swelling rather than capillary-assisted fluid ingress.

The study introduces citric acid as a thermally decomposable porogen to induce tailored porosity within cellulose matrices. Citric acid is particularly well-suited for this role due to its well-characterized thermal decomposition behavior, releasing gaseous byproducts upon heating. When citric acid particles are embedded in a hydrated polymer matrix and subsequently subjected to controlled thermal treatment, microvoids form at the sites of decomposition. This process increases pore density, pore interconnectivity, and overall surface area without compromising polymer compatibility.

The scientific rationale for selecting this approach is robust. Thermally induced porogen decomposition:

bypasses organic solvents or hazardous extractants,
avoids post-casting leaching steps,
supports scalability under standard pharmaceutical manufacturing equipment,
maintains physicochemical stability of the host polymer.

This conceptual framework underpins the study’s experimental design and guides the interpretation of resulting film characteristics.

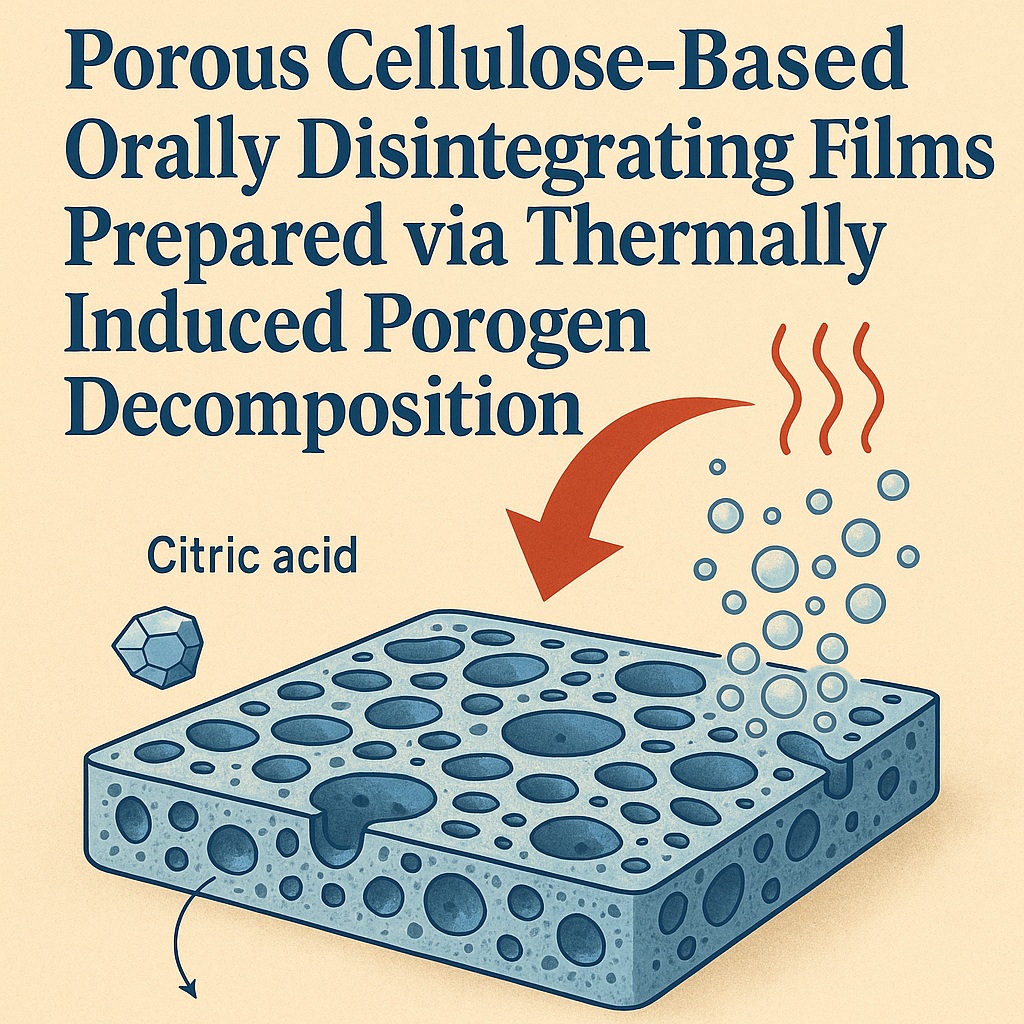

Solvent Casting and Thermal Decomposition: Engineering a Porous Microarchitecture

The research employs the conventional solvent-casting method—hydrating HPMC alongside citric acid, plasticizers, and distilled water, followed by uniform spreading and controlled drying. The novelty emerges during the post-drying thermal phase, during which controlled heating initiates citric acid decomposition.

At a mechanistic level, citric acid undergoes dehydration and decarboxylation reactions at elevated temperatures, generating CO₂ and other volatile species. As these gases escape through the polymer network, they leave behind voids whose dimensions reflect the interplay between:

polymer viscosity,
citric acid particle size,
decomposition kinetics,
thermal exposure duration.

The study demonstrates that porosity formation is dependent not only on the amount of porogen used but also on the thermal profile applied. Suboptimal temperatures produce incomplete decomposition, while excessively high temperatures risk polymer deformation or crosslinking. The authors optimize this balance empirically, ensuring that functional pores emerge without compromising film continuity.

This method represents a cohesive integration of thermal chemistry and polymer physics, yielding film architectures unattainable via simple solvent casting alone.

Physicochemical Characterization: FTIR and XRD as Tools to Confirm Structural Integrity

Fourier-transform infrared spectroscopy (FTIR) provides essential insight into whether thermal treatment and porogen decomposition alter the chemical structure of the cellulose matrix. The spectra presented in the study show characteristic HPMC peaks—hydroxyl stretching, methyl ether vibrations, and backbone-associated absorptions—remaining unchanged across film variations.

The absence of new peaks or peak shifts indicates that no chemical bonding occurs between residual citric acid byproducts and the polymer. This point is critical for pharmaceutical safety and stability: porosity must arise via physical modification, not chemical transformation.

Similarly, X-ray diffraction (XRD) data confirm the amorphous nature of the HPMC matrix throughout the thermal treatment. The lack of crystallinity emergence demonstrates that the polymer does not undergo undesirable thermal rearrangement, ensuring consistent dissolution and mechanical performance.

Together, these analytical findings reinforce the premise that porosity formation is a purely physical process that preserves the essential chemical and structural properties of the film.

Morphological Insights: SEM Visualization of Pore Formation

Scanning electron microscopy (SEM) serves as the central technique for validating pore development. The images reveal a clear progression from dense, featureless surfaces in control ODFs to intricately textured structures in porogen-containing films. The pores appear distributed both on the surface and internally, demonstrating that gas evolution permeates the full film thickness.

SEM evidence illustrates several important features:

increasing porogen concentration produces higher pore density,
pore size remains relatively uniform within each formulation,
pores exhibit interconnected networks conducive to rapid fluid penetration,
structural integrity of the matrix remains intact despite increased void content.

The presence of interconnected porosity is particularly significant, as it supports capillary-driven disintegration rather than mere surface hydration.

This morphological validation elevates the conceptual model from theoretical expectation to experimentally demonstrated feasibility.

Mechanical Properties: Balancing Flexibility and Porosity

Introducing porosity inherently weakens any polymeric film. The study evaluates mechanical properties—tensile strength, Young’s modulus, and elongation-at-break—to quantify these changes. As expected, increasing porogen content reduces tensile strength and stiffness due to the presence of voids that interrupt stress propagation pathways.

However, the reduction remains within acceptable ranges for ODF functionality. The films do not exhibit brittleness or cracking, even at higher porosity levels. This reflects the inherent flexibility of HPMC, which accommodates void formation without catastrophic mechanical compromise.

The mechanical characteristics underscore a crucial pharmaceutical engineering principle: an optimal balance must be achieved between porosity and mechanical robustness, and the study’s formulations clearly attain this equilibrium.

Thickness, Weight Uniformity, and Moisture Interactions: Maintaining Dosage-Form Consistency

Uniformity testing reveals that the inclusion of citric acid does not significantly affect film thickness or weight distribution. This uniformity is essential for dose accuracy and regulatory compliance. Residual moisture content remains stable across formulations, indicating that thermal decomposition does not induce excessive dehydration or cause polymer microstructural collapse.

Moisture plays a dual role in ODFs—facilitating disintegration but risking instability if present in excess. The study’s ability to maintain consistent moisture content across porous and nonporous films speaks to the robustness of the casting and thermal protocols.

Disintegration Performance: Mechanistic Enhancement via Porosity

The central functional outcome of porous ODFs is enhanced disintegration. The study confirms that thermally induced porosity significantly accelerates disintegration time compared with nonporous controls.

Mechanistically, this improvement arises from:

increased capillary absorption pathways,
enhanced surface area for fluid contact,
rapid polymer hydration due to internal pore networks.

Importantly, the films disintegrate uniformly, with no evidence of structural delamination or selective degradation. This uniformity supports predictable drug release and reinforces the reliability of the porogen decomposition approach.

Drug Release Profiles: Faster Dissolution Without Chemical Instability

Although the study uses a model drug for evaluation, the implications extend to a wide range of poorly soluble and rapidly acting APIs. The dissolution profiles demonstrate a clear enhancement in release rate proportional to porosity level.

Crucially, thermal treatment does not degrade the API, as confirmed by spectral analysis and consistent dissolution kinetics. The improved release arises solely from structural modification, not chemical alteration or reactive interaction.

This point underscores the scalability of the method: porous ODFs can improve drug release characteristics without introducing new degradation risks.

A Critical Evaluation of the Thermally Induced Porogen Method

From an academic standpoint, the strengths of this approach include:

simplicity of manufacturing,
avoidance of specialized equipment,
absence of harmful solvents,
tunable pore architecture,
preservation of polymer chemical integrity,
predictable mechanical and dissolution behavior.

Potential limitations include:

requirement for precise thermal control,
risk of incomplete decomposition at suboptimal temperatures,
possible interactions with temperature-sensitive APIs.

Nevertheless, the method is promising and aligns well with current industrial capabilities.

Conclusion

This study provides a sophisticated and technically rigorous demonstration of how thermally induced porogen decomposition can be harnessed to engineer porous cellulose-based ODFs with improved functional performance. The integration of polymer science, thermal chemistry, and pharmaceutical engineering results in films that retain mechanical integrity while achieving superior disintegration and dissolution characteristics.

For researchers exploring next-generation orally disintegrating drug delivery systems, this work represents a valuable framework grounded in reproducible, scalable, and chemically safe manufacturing principles.

FAQ

1. Does thermal decomposition of citric acid alter the chemical structure of HPMC?

No. FTIR and XRD analyses confirm complete preservation of polymer chemistry and amorphous architecture.

2. Does increased porosity compromise the mechanical strength of the films?

Yes, tensile strength decreases; however, films remain sufficiently flexible and mechanically stable for pharmaceutical use.

3. Why does porosity accelerate film disintegration?

Porosity creates interconnected pathways that allow saliva or dissolution media to penetrate rapidly, enabling faster hydration and structural breakdown.
